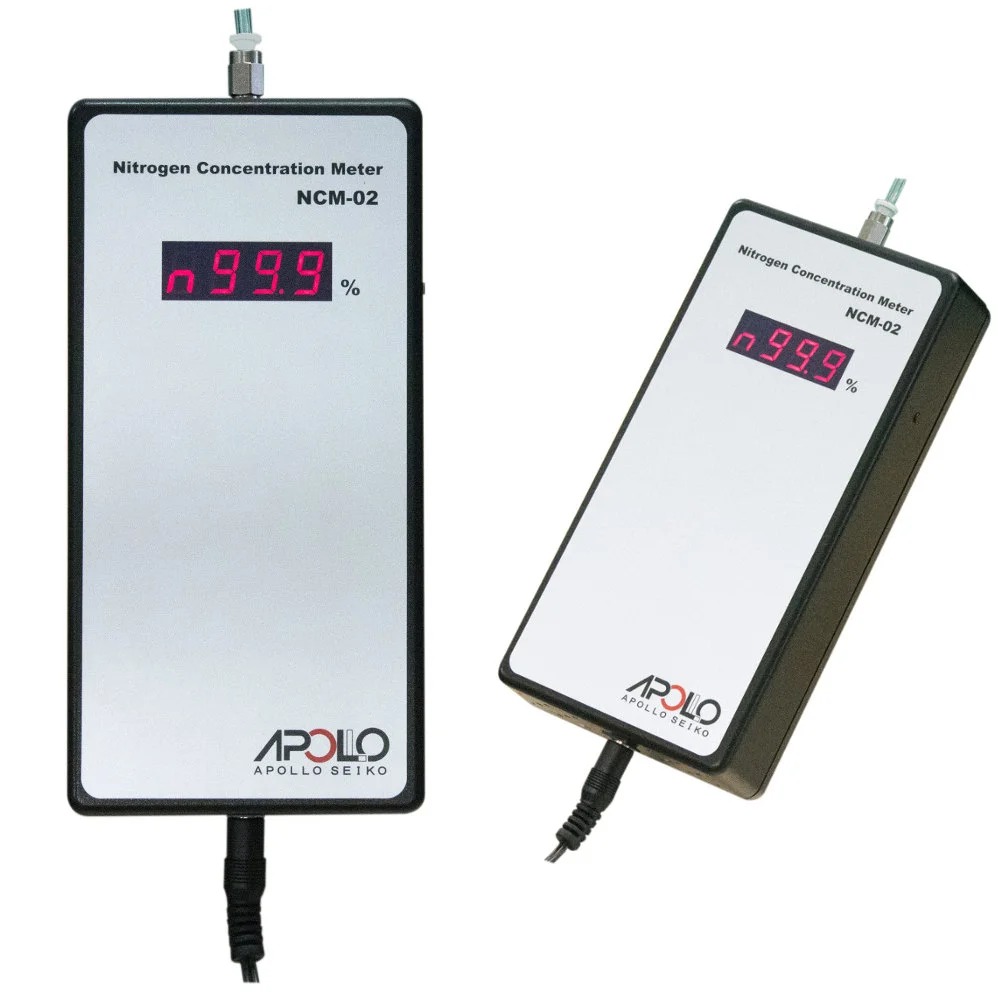

NCM-02 N2/O2 Measuring Instrument
NCM-02 Nitrogen Measuring Instrument
These meter can measure nitrogen concentration up to: 99.9%, O2 concentration: 25%. The level of N2 gas generation is measured precisely. Sub-optimal levels of N2 are a common sign that a internal filters in the system aren't clean. This tool is great for detecting such issues.
| Type |
NCM-02 |
|---|---|
| Display Value |
100 - 02 Concentration (%) |
| Measuring Range |
99.9~75%(N2) 0.1~25%(O2) |
| Overall Accuracy |
±1.0%FS (conforms to O2) |
| Power Supply |
AC100~220V (adapter included) |
| Power Consumption |
Less than 15W |
| Weight | 0.5kg |
| N2 Enclosing Port |
For Φ4mm tube / One-Touch Connector |
