L-CAT EVO II
L-CAT EVO II

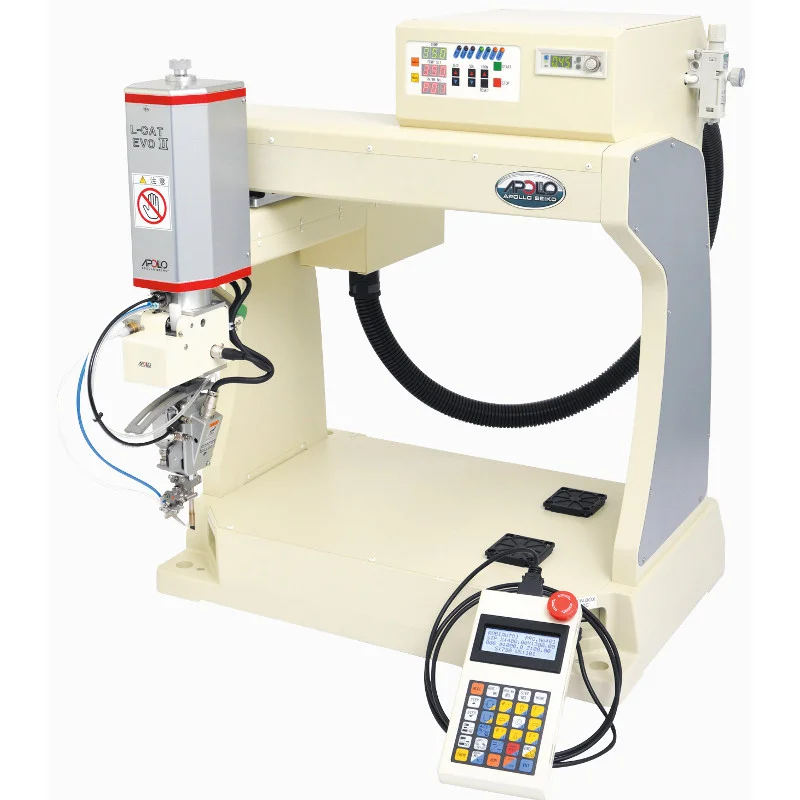

The latest iteration of the EVO line, the L-CAT EVO II is an iron-tip robot designed for both desktop and in-line applications, with smoother and more reliable axes, expanded I/O, and Ethernet capability.
Where the EVO II truly shines is flexibility. With a capacity for 100 programs, 100,000 points, and 300 soldering profiles with customizable soldering temperature for optimal quality and cycle time, this machine is capable of meeting virtually any PCB soldering requirement.
Throw in its X&Y motors with high-accuracy rotary encoders, achieving 0.01 mm resolution (repeatability 0.02mm) and a maximum speed of 750 mm/sec, and you can see what makes the EVO II a reliable choice.
| Type |
L-CAT EVO II 4330 |
L-CAT EVO II 4430 |
L-CAT EVO II 4540 |
|
|---|---|---|---|---|
| Drive Method |
5-phase stepping motor with X,Y axes |
|||
| Operation Range |
X, Y, Z Axes (mm) |
300x300x60 |
400x300x60 |
500x400x60 |
| R Axis |
340 ° | |||
| Weight (kg) |
50 | 52 | 55 | |
| Portable Weight (kg) |
3 |
|||
| Axis Speed |
X, Y Axes |
750 mm/sec. | ||
| Z Axis |
150 mm/sec. | |||
| R Axis |
360°/sec. | |||
| Repeatability | ±0.02mm | |||
| Teaching Method |
Remote Teaching (JOG) |
|||
| Manual Data Input (MDI) |
||||
| SYS-I/O |
Input :16 Output:10 |
|||
| Free I/O |
Input: 16 Output:16 |
|||
| External Interface |
Ethernet, RS232C |
|||
| Program Capacity |
100 programs |
|||
| Memory Capacity |
100,000 point |
|||
| Tiimer | TIM: 0.1~99.9(m/sec.) |
|||
| Iron Up/Down |
CY: ON/OFF |
|||
| Setting Temperature |
0~500℃ | |||
| Soldering Conditions |
198 conditions |
|||
| Soldering Step |
21 step |
|||
| Solder Feeding Speed |
1.0~50.0 mm/sec | |||
| Solder Feeding Amount Resolution |
0.01 mm |
|||
| Solder Diameter |
φ0.4~φ1.6mm | |||
| Heater Capacity |
130W (Option: 200W available) |
|||
| Nitrogen Generator |
Standard equipment to robot inside, with digital flow meter |
|||
| Display Language |
English, Chinese, Korean, Japanese |
|||
| Power Source |
AC94~260V (Single phase) |
|||
| Power Consumption |
330 VA max (including heater) |
|||
| Air Supply |
0.4~0.5 MPa (dry & clean air) |
|||
| Dimensions (WxDxH, in mm) |
520x995x714 | 620x995x714 | 720x1100x714 |
|
